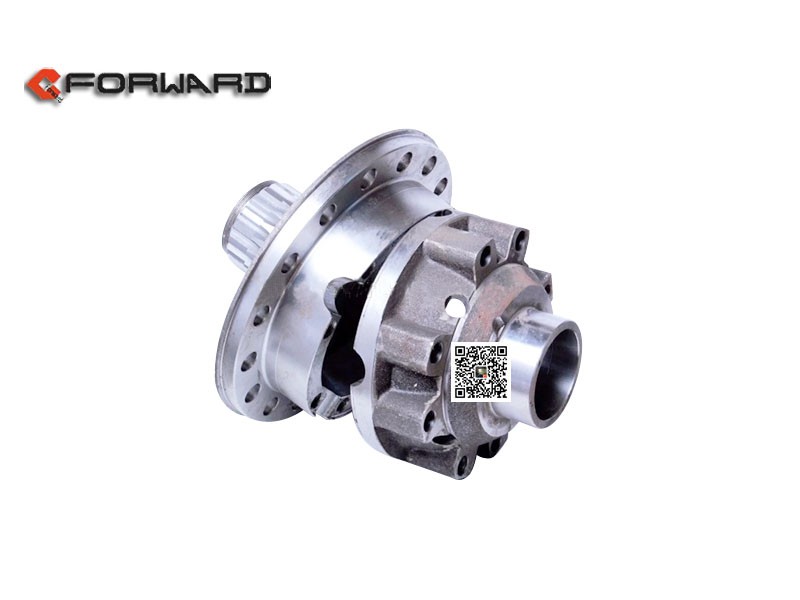

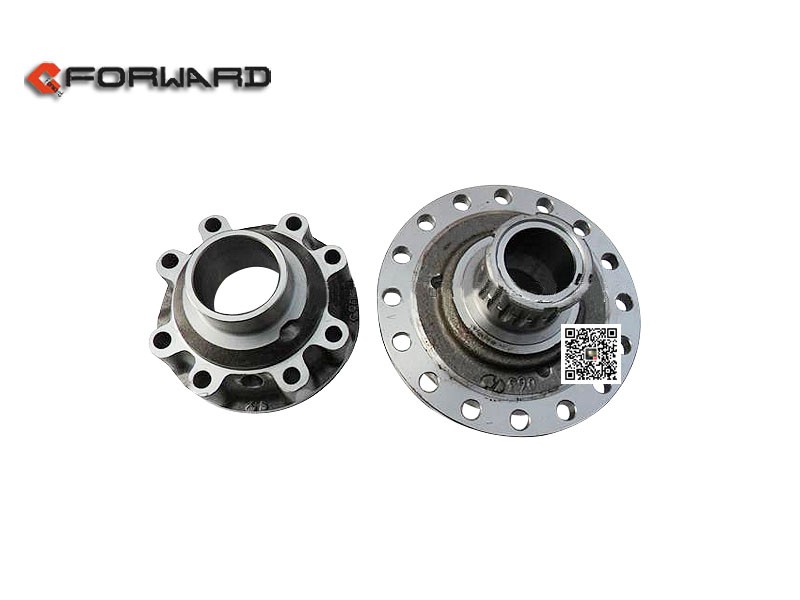

199012320198 差速器壳总成

济南向前汽车配件有限公司供应199012320198 差速器壳总成【199012320198】,价格面议,下面是详细参数及照片。
199012320198,Differential housing assembly,济南向前汽车配件有限公司
199012320198,Differential housing assembly,济南向前汽车配件有限公司199012320198,Differential housing assembly,济南向前汽车配件有限公司

产品: Differential housing assembly
图号:

199012320198

车型: SHACMAN
品牌: Forwar
Size: 265*255*255 mm
Weight: 16.5 kg
单价: 面议
所在地: 山东 济南市 山东济南泉利重配城
有效期至: 长期有效
最后更新: 2024-11-01 11:23
浏览次数: 291
从恒科汽配网上联系我们

详细说明
服务条款 豪沃发动机总成
199012320198,Differential housing assembly,济南向前汽车配件有限公司 199012320198,Differential housing assembly,济南向前汽车配件有限公司
 Working principle of differential:



     The differential adjustment is automatic and involves the "minimum energy consumption principle," in which all objects on earth tend to use the least energy. For example, if you put a bean in a bowl, the bean will automatically stay at the bottom of the bowl but never on the wall. Since the bottom of the bowl is the lowest possible energy (potential energy), it will automatically choose to stay still (minimum kinetic energy) instead of constantly moving. Similarly, the wheel will automatically tend to the state of the lowest energy consumption when turning, automatically according to the turning radius to adjust the rotation of the left and right wheels.

     When turning, because the outside wheel has to pull the phenomenon, the inside of the wheel has the phenomenon of slippage, two driving wheels can produce at this time in the opposite direction from the two additional force, because "the principle of minimum energy consumption", inevitably leads to both sides of the wheel speed is different, so as to destroy the balance of the three relations, and by reflecting on the axle shaft gear axle shaft, forcing the planetary gear rotation, make the inside of the half shaft speed slow, the lateral half shaft speed is accelerated, so as to realize the difference of on both sides of the wheel speed.

1 138090320159 Differential adjustment nut
2 190003326148 Tapered roller bearing 32216
3

Q151B1480TF2

Differential bolt 190003803712
4 199012320198 Differential housing assembly
  F19901232019801 Differential assembly
5 118000320131 Half shaft gear gasket (on demand)
6 199012320009 Half shaft gear
7 DZ90129320002 Cross shaft assembly
8 DZ90129320003 Planetary gear
9 DZ90129320082 Planetary gear gasket
10 DZ9114420671 Bevel gear pair
12 DZ9114320013 Bevel gear bolt
  DZ9114320011 Bevel gear bolt
