The utility model relates to a part of a heavy off-road vehicle, in particular to an integral steering knuckle structure used for the front steering drive axle of a heavy off-road vehicle.
The steering drive axle of heavy off-road vehicles mainly adopts Steyr technology. The steering knuckle, axle head, axle fork, kingpin, axle housing and other components constitute the steering mechanism of the steering drive axle. Among them, the steering knuckle is connected with the shaft head, the shaft fork and the axle housing respectively by bolts, and the steering knuckle rotates around the kingpin to realize the steering function of the steering drive axle. This structure has some disadvantages, such as complex structure, tedious assembly process, and the limitation of axle fork and axle housing connection bolts makes the flange of the axle housing become the stress concentration point, which affects the overall bearing capacity of the whole bridge.
| 1 | 168000340016 | Adjust the gasket |
| 2 | DZ91129320007 | The shaft head nut |
| 3 | 188000420022 | baffle |
| 4 | 188000420003 | Round the sun |
| 5 | 188000440010 | Additional gaskets |
| 6 | 190003933300 | An elastic retainer for the shaft |
| 9 | 1160-2400062 | Cylindrical pin 190003901704 |
| 10 | 188000420012 | O-ring seal |
| 11 | 199100420003 | Drive flange Assembly |
| PF19910042000301 | Round edge assembly | |
| 12 | DZ9112340214 | End cover |
| 13 | DZ9112346116 | Hexagonal plug with cylindrical head |
| 14 | 190003802511 | Hexagon head bolt Q150B1018 |
| 16 | 190003825513 | Ten grooved disc head screws Q2541020 |
| 17 | 199012340075 | Planetary wheel gasket |
| 18 | 199000420050 | Planetary wheel (Z=16) |
| 19 | 1-99-934-013 | Needle roller bearing |
| 20 | 188000420024 | The planets wheel |
| 21 | 190003330148 | Steel ball 8.0 |
| 22 | Q151C1265TF2 | Hex head bolts - fine teeth |
| 23 | 188000410069 | Needle roller bearing NK55/35 |
| 24 | 190003936071 | circlip Q43870 |
| 25 | 190003078556 | Shaft seal |
| 27 | 188000410102 | Locking pin |
| 28 | 188000410109 | tube |

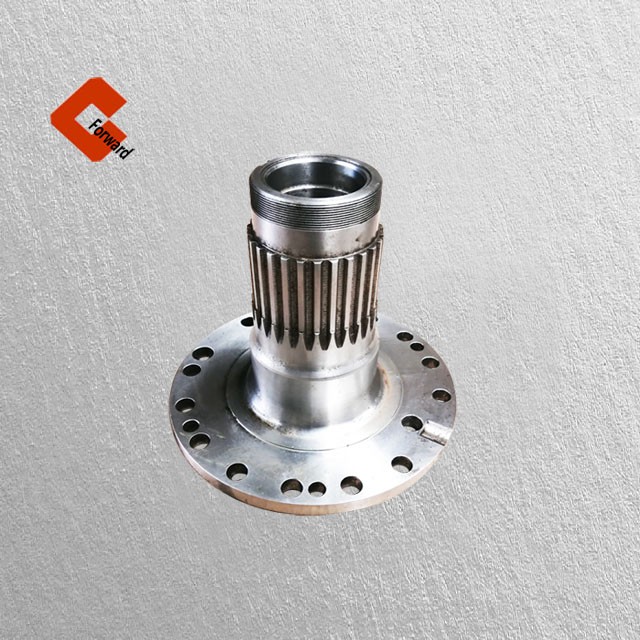

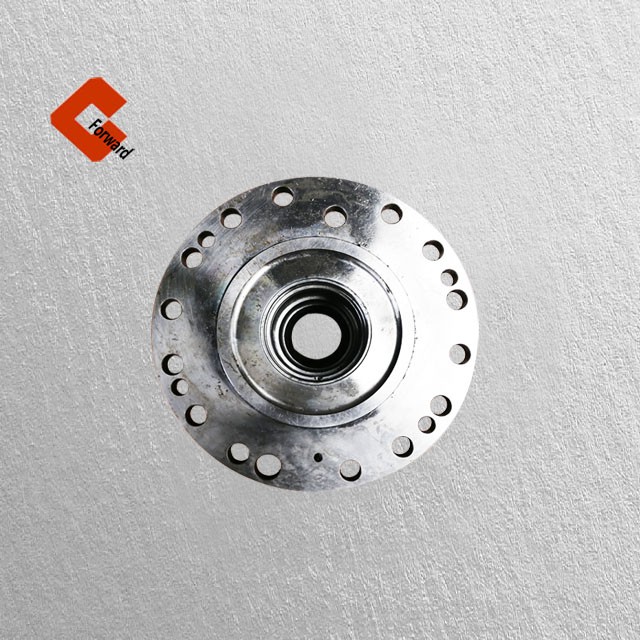

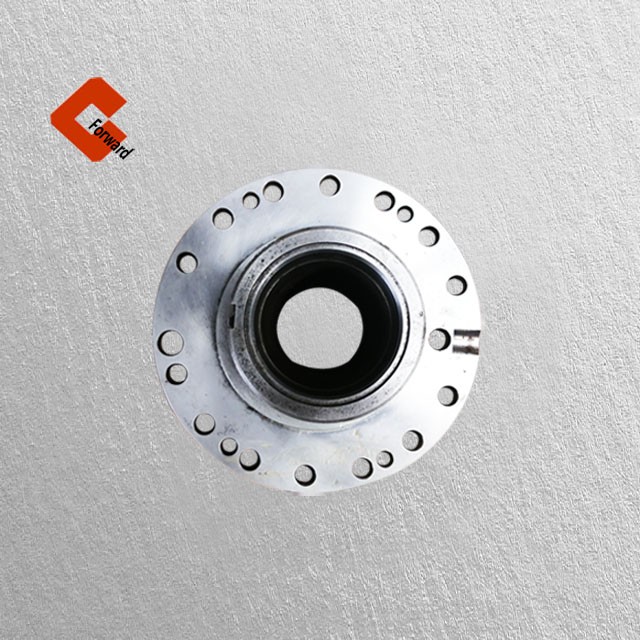

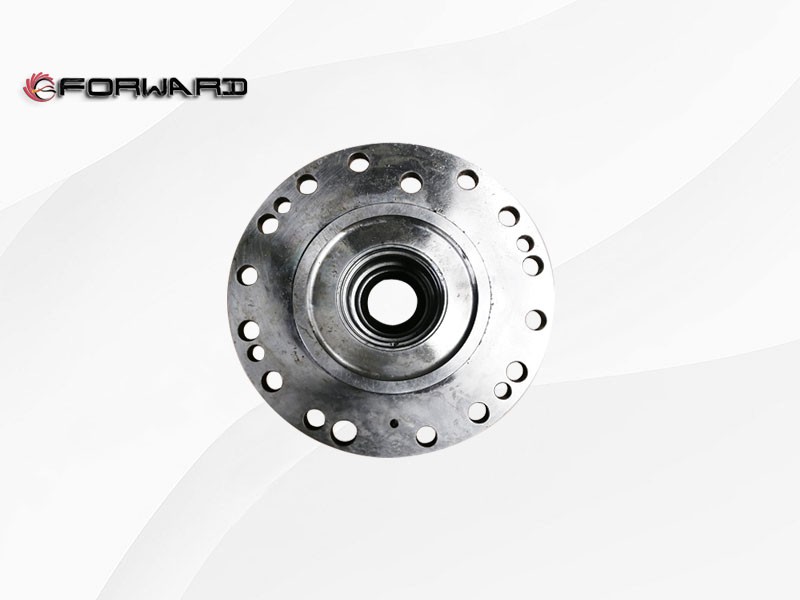

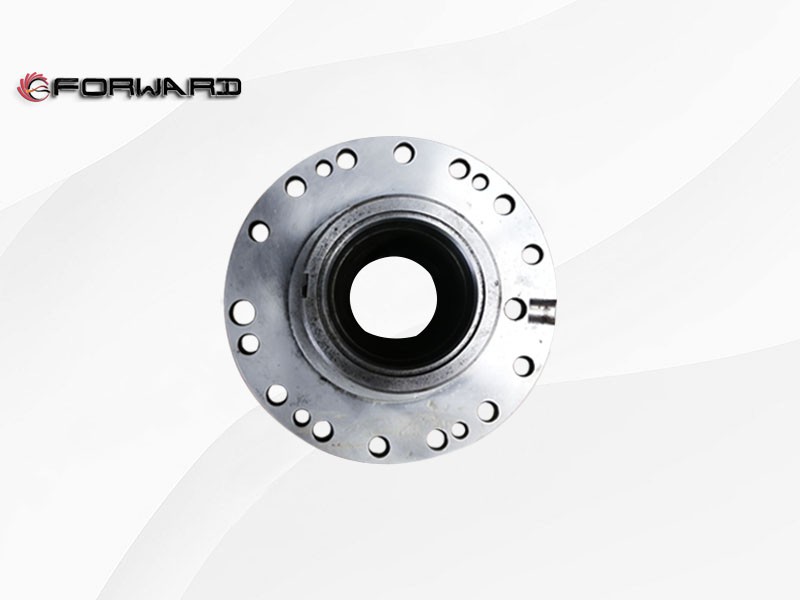

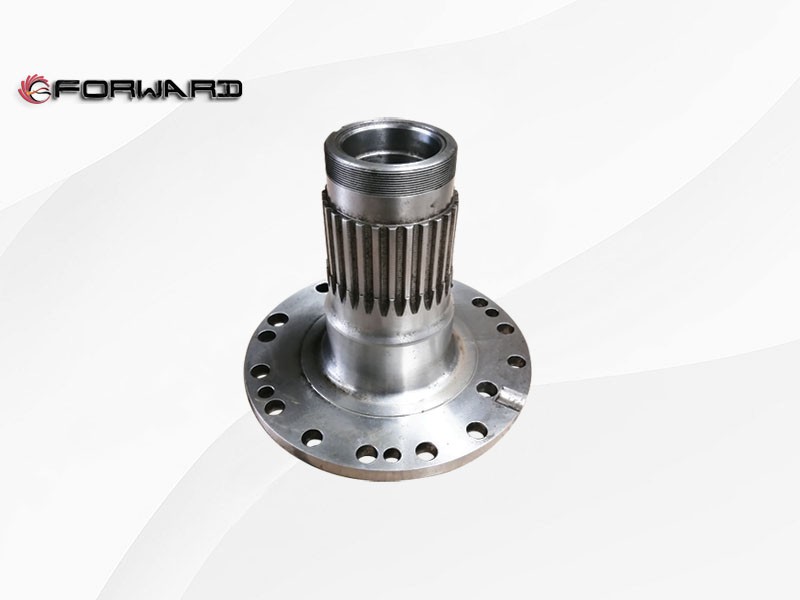

| 29 | DZ9100410063 | Shaft head (left) |
| DZ9100410064 | Shaft head (right) | |
| 30 | 140600060011 | O-ring seal |
| 31 | 188000420028 | Every ring |
| 32 | 2190-3103023 | Shaft seal |
| 33 | 190003326443 | Tapered roller bearing 32020 |
| 34 | 199000410103 | Wheel bolt |
| 35 | DZ9100420029 | Front wheel hub |
| 36 | 190003884160 | Wheel nut |
| 37 | 190003326445 | Tapered roller bearing32022 |
| 38 | 188000420014 | Retaining ring |
| 39 | 199000420049 | The ring gear |
| 40 | 199112340021 | Gear ring support assembly |
| 41 | 188000420030 | Bearing washer |
| 42 | 188000420034 | Thrust pad ring |
| 43 | 168000340015 | Thrust lock plate |
