DZ97259090030 手制动阀

济南向前汽车配件有限公司供应DZ97259090030 手制动阀【DZ97259090030】,价格140.00元/件,下面是详细参数及照片。

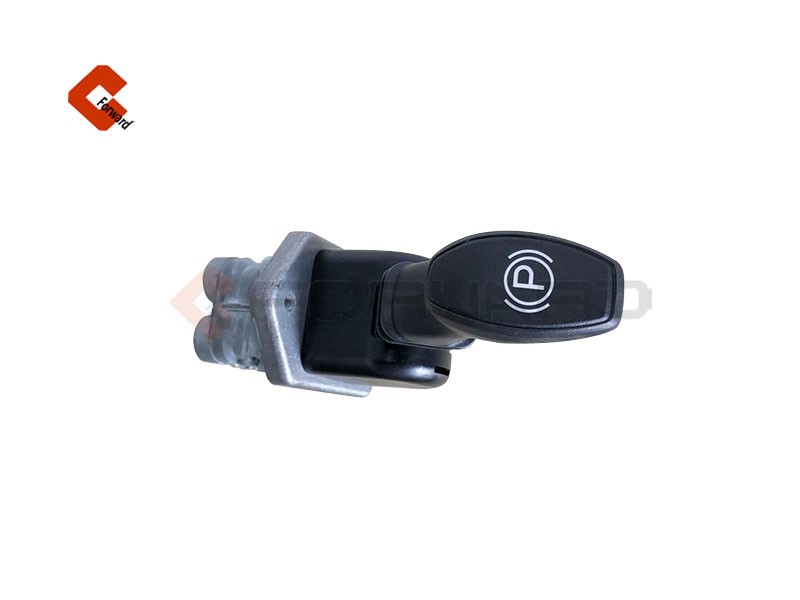

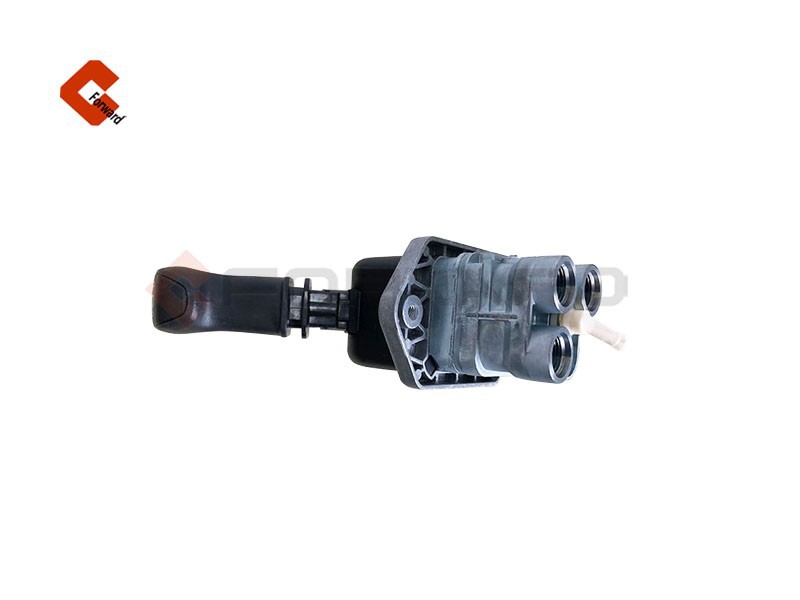

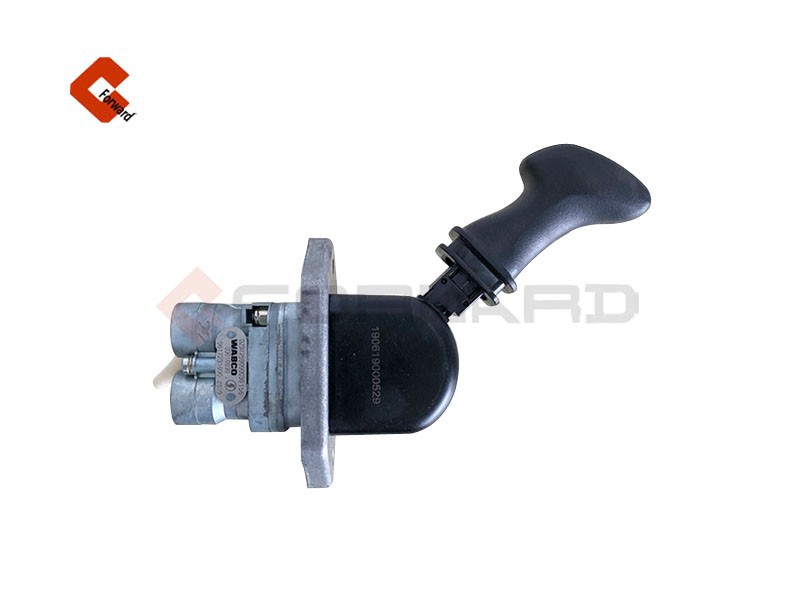

DZ97259090030,Hand brake valve,济南向前汽车配件有限公司
DZ97259090030,Hand brake valve,济南向前汽车配件有限公司DZ97259090030,Hand brake valve,济南向前汽车配件有限公司DZ97259090030,Hand brake valve,济南向前汽车配件有限公司

产品: Hand brake valve
图号:

DZ97259090030

车型: SHACMAN M3000
品牌: Forward
Weight: 0.72kg
单价: 140.00元/件
所在地: 山东 济南市 山东济南泉利重配城
有效期至: 长期有效
最后更新: 2024-11-01 11:22
浏览次数: 270
从恒科汽配网上联系我们

详细说明
服务条款 豪沃发动机总成
DZ97259090030,Hand brake valve,济南向前汽车配件有限公司 DZ97259090030,Hand brake valve,济南向前汽车配件有限公司 DZ97259090030,Hand brake valve,济南向前汽车配件有限公司
 Hand control valve is used to operate longitudinal spring energy storage control chamber, so that parking system safety can be fully relied on. Due to the special characteristics of the junction structure, the braking action can be sensitive with spirit and follow up.

1 row of parking space:

 In the driving state, the compressed air passes through the (intake) air port 1 and the open intake valve (1), to the (outlet) air port 21, and the spring energy storage control chamber is charged.

 2 System moving position:

When braking, the convex wheel (2) will push the rod (3) down, the intake valve (1) closed, the exhaust valve (6) open, the outlet 21 through the exhaust port 3 exhaust.

 When the leveling plug (5) moves down in the spring (4), the exhaust valve (6) is closed and the intake valve has not been opened, the leveling is reached, and a system overrun process is realized
DZ97259090030-zp
