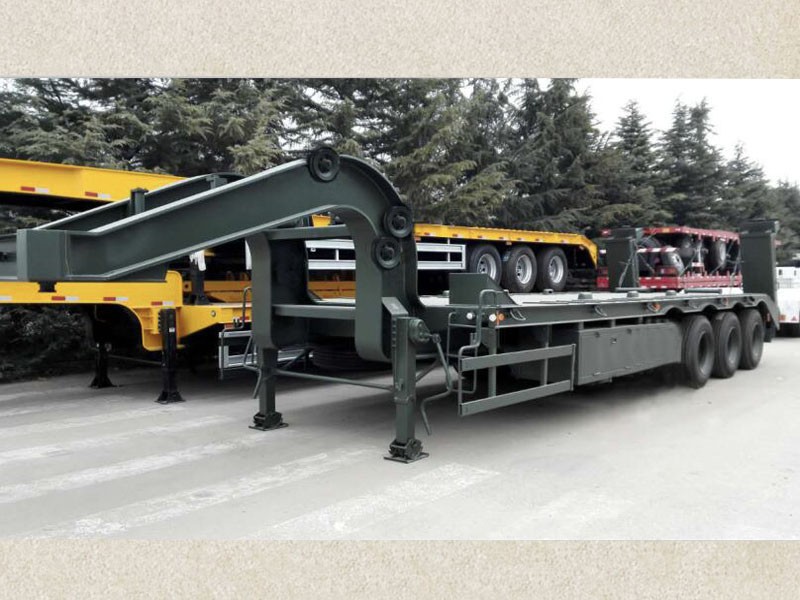

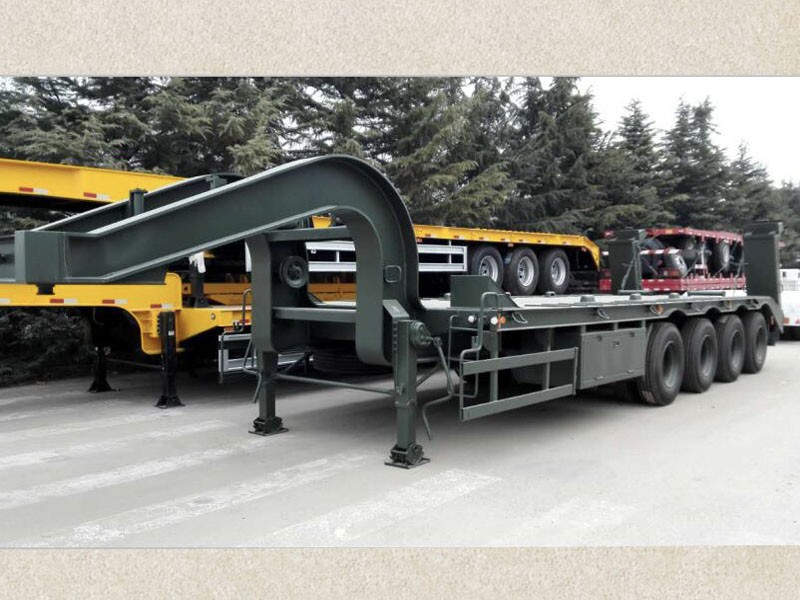

ZL9750BG-001 60t semi-trailer

                  60 吨半挂车(ZL9750BG-001)
    60ton Semi – trailer Introduction(ZL9750BG-001)

采用鹅颈式，三轴油气悬架布置型式。设有 50 号牵引销与牵引车相连，
The semi-trailer with 3 axles and hydraulic-pneumatic suspensions can be
connected to the tractor by using gooseneck style connection and Series 50 pin.

同时设有与牵引车连接的气制动接头和 24V 电连接器。
It is installed with pneumatic and 24V electric connectors

为配合牵引车绞盘工作，牵引重型装备上下车，设有钢丝绳导向机构。
It is installed rope roller for loading or unloading the heavy machine by winches

整车满足：整车需适应高温、高湿、高盐雾环境。
Requirements: The truck can work in high-temperature, high-moistures and salty
fog environments

主要性能参数如下 The main parameter：

最大总质量 Maximum total weight 74000kg

装载质量 Loading Capacity 60000kg

整备质量 Kerb weight 15000kg

车长 Length 14000mm

车宽 Width 3400mm

车高 Height 2680mm

轮距 Tread 2400mm

轴距 Wheelbase 8750+1350+1350mm

承载面尺寸 Bed dimension

长 Length 8850mm

宽 Width 3400mm

高 Height with max loading（满载） 1375mm

1、车架的设计 frame
焊接框架结构，由纵梁、边梁、横梁焊接而成，纵梁采用弧形（上翘）
鹅颈，断面为工字型 。材料采用 60 公斤级高强度焊接结构钢板。承载平台
为花纹钢板，上表面布有方钢防滑条，并设有可移动导向挡块，用于履带式
车辆的导向和定位 。
The frame have three main parts: main beams, edge beams and cross beams，
the parts are connected by welding. The front main H beam is gooseneck style
connection parts to tractor. The beam have 60kg/cm^2 tensile strength and is easy
to be welded. The main bed surface is checkered sheet and installed with steel slip
bars. The main bed also be installed with portable guide block that be used to
guide and fix crawler machines。

1.1 车架纵梁中心距 The distance of main center
研制方案中所定，车架纵梁中心距为 1200mm，纵梁上下翼板宽为 300 mm。
The distance of main beams center is 1200mm and the width of edge sheet of
main beams is 300mm

2 车轴、悬架 axles and suspension
三轴均采用钢板弹簧悬挂，轴距 1350mm，车桥单轴承载 16 吨。
3 axles with Leaf spring suspension, T the axles distance is 1500mm ，Single axle
shaft bearing 16 tons.

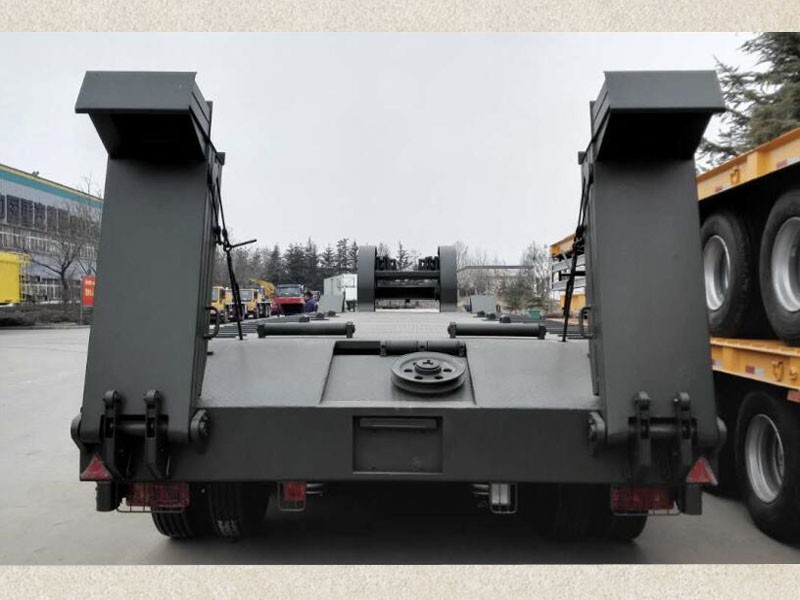

3、 渡板 Tail gate
焊接框架结构，弹簧储能机械翻转折叠式，满足 60 吨履带装备辆登车。
Tail gate is welded frame structure with spring luffing mechanism, can be used for
loading or unloading 60 tons crawler machine。

4、支承装置的设计 Support design （可选装液压收起装置，Optional hydraulic
retraction device）
设前、后支承，前支承为液压支撑，行程 490，单支撑可输出 28 吨力，后支
承为机械整体不可调式。
There are 4 support legs, Front 2 support for machinery,stroke 600mm,
output28 tons of force/ Single cylinder ，the 2 rear are not adjustable.

5、 车轮 tires
轮胎为 12.00-24 无内胎子午线工程轮胎。轮辋为 8.5 寸轮辋。
Tubeless Radial Tires 12.00-24; 8.5rims

6、 重型装备固定装置 heavy machine fixed parts
在平台上表面履带接触处设防滑钢条，增加重型装备的运动阻力；设有紧绳
器和紧固带，在平台上表面重型装备履带前部增设定位楔块，内侧位置增设
两排导向挡块。
On the bed surface there are steel slip bars for increasing moving resistance and
guide block in the middle. There are ropes and fasten rope mechanism and fix
blocks in the front

7、制动系统 brake system
半挂车制动系统采用双管路，设有行车制动、驻车制动和紧急制动，采用
WABCO 紧急制动阀，整车主管路采用内外镀锌钢管或铜制管,制动气源接口
采用国际标准接口形式。
Dual brake pipe with inner and outer galvanized steel or copper pipe, provided
with a driving brake, parking brake and emergency brake, the WABCO
emergency brake valve, international standard pneumatic resource connector

8、电器系统 electric system
电器系统工作电压 24V，负极搭铁，由组合灯、后雾灯、牌照灯、倒车灯、
侧标志灯，三角形回复反射器、圆形回复反射器。
24V electrical system, cathode grounding, by combination lamp, rear fog lamp,
license plate lamp, reversing lamp, side marker lamp, triangular reply reflector,
circular retro reflector.

9、导向拖动机构 Steering mechanism
设有钢丝绳导向滚轴和导向滑轮，在牵引车绞盘作用下，方便可靠的完成重
型装备的上车或卸下。
With wire rope rollers and rope pulley, it is convenient and reliable to load or
unload heavy machines by winches

11、喷漆要求 painting
底漆：高性能防腐底漆；中间漆：高性能防腐封闭中间漆；面漆：高性能海
洋防腐面漆。
High performance anticorrosion primer; high performance anticorrosive closed
intermediate paint , high performance marine anti-corrosion paint.

12 、  其它 others
设有、护栏、工具箱、挡泥板等。
Toolbox, fences, fenders and so on.

13、标牌 signs
采用英文文字的说明牌、警示牌等标牌
signs, warning signs and other signs in English

14、随车使用说明书 manual
采用英文文字使用说明书。Manual in English
